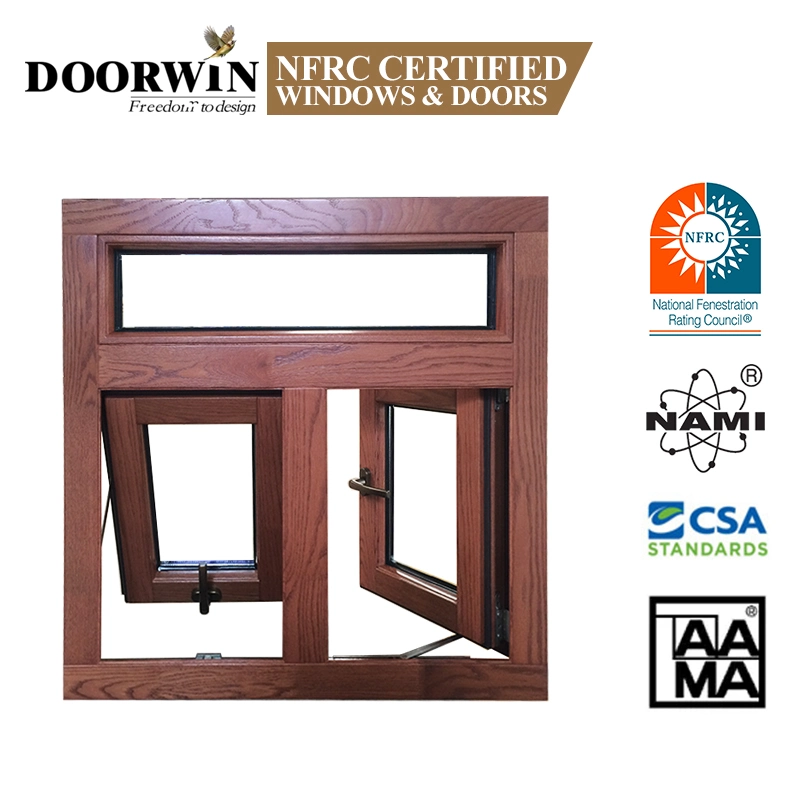

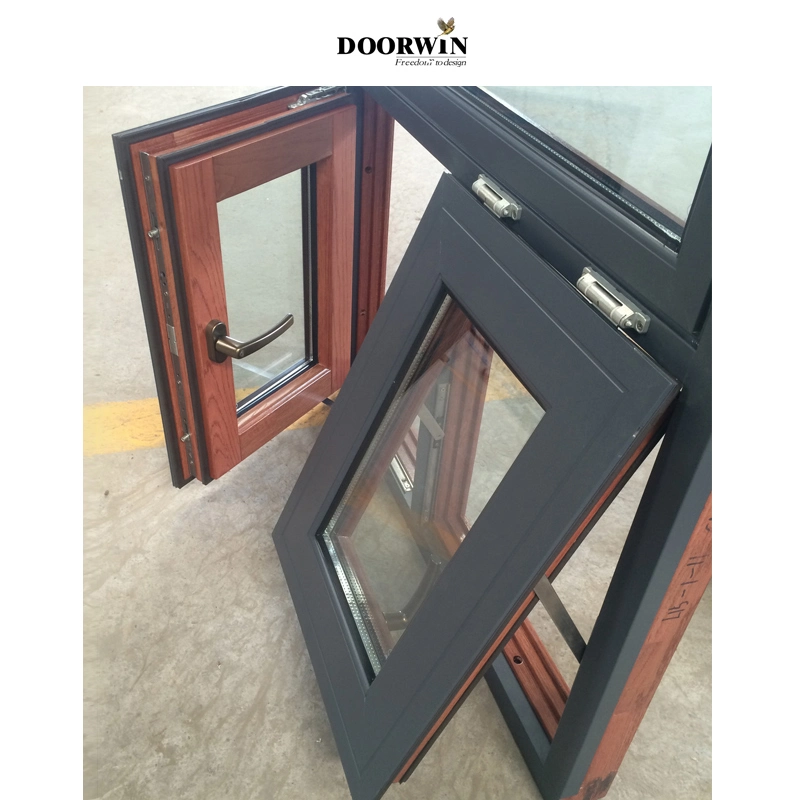

Manufacturer for Aluminium Door and Casement Window
Doorwin Aluminium Door and Casement Window feature good water&air tightness, energy saving, secure
and weather-proof, easy installation.
Here is some detail information about our Aluminium Door and Casement Window:
1. Profile:
Aluminium alloy, Alu6063, thermal break and aluminum profile with wood surface is also a great option for the clients.
2. Profile thickness:
2.0mm, and thickness bigger than 2.0mm is avaiblable.
3. Surface treatment:
Anodized, Electrophoresis, Powder coated.
4. Glazing:
A. Single glass: 5mm/ 6mm/ 8mm (normal/ tempered glass)
B. Double glazing: 5mm+ 6mm/ 9mm/ 12mm(argon gas) +5mm-low e glass
C. Laminated glass: 5mm+ 0.38/ 0.76/ 1.52PVB+5mm
D. Coated glass
5. Hardware:
Both German and China hardwares are available.
6. Performance Parameters:
Sound insulation: RW≥ 28dB
Wind pressure resistance: P≥ 5000PA
Air permeation resistance: Q1≤ 0.5m3/m@h, Q2≤ M3/m2@h
Water resistance: P≥ 500PA
U value 1.86 Watt / m2 Kelvin (tested)
| Place of Origin: | Beijing, China (Mainland) |
| Brand Name: | Doorwin Aluminum Window |
| Model Number: | Aluminum Window-Doorwin |
| Profiles | 1: 6063-T5 High Quality Thermal Break Aluminium Profiles |
| 2: 6063-T5 High Quality Non-Thermal Break Aluminium Profiles | |
| 3: Solid Wood Aluminum Profiles | |
| Glass Type | 1: Double toughened glazing: 5mm+12A+5mm,6mm+12A+6mm |
| 2: Single toughened glazing:6,8,10,12 | |
| 3: Laminated glazing:6.38,10.76,10.38 | |
| 4: Triple Glazing Tempered Glass: 5mm+9A+5mm+9A+5mm, 5mm+12A+5mm+12A+5mm, | |
| Hardware | 1: Germany Origin Made Brand Hardware-ROTO / SIEGENIA |
| 2: China Top Brand Hardware-KinLong | |
| 3: Australia Brand Hardware | |
| 4: USA Origin Brand-TRUTH | |
| Mesh/Fly Screens | 1: Stainless Steel Security Mesh |
| 2: Aluminium Security Mesh | |
| 3: Fiberglass Flyscreen | |
| 4: Retractable Flyscreen | |
| Surface Finishing | 1: Akzo-Nobel Interpon Powder coating |
| 2: Anodized-Clear / Black / Bronze | |
| 3: Electrophoresis | |
| 4: Wood Grain | |
| 5: Fluorocarbon(Kynar Finishing) | |
| Service: | Quick Technical Support / Enough Spare Parts for Maintenance |
| Performance: | Equivalent Or Better Than USA, EU, Australia, and Middle East. |
| Accessoires: | Installation Screws, Drain Hole Caps, Bolt Hole Caps etc. |
| Spare Parts | Self-Drilling Expansion Screw / Steel Joint Pieces |
