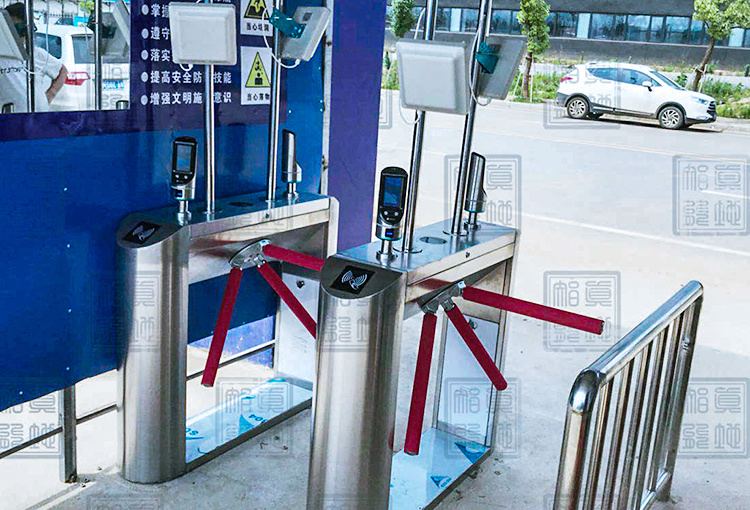

Semi-automatic mechanism RFID access control tripod turnstile gate
Configuration movement | Standard tripod turnstile movement |
Brake bar length | 510mm |
Material | 304 stainless steel |
Passage direction | Single directional / Bi-directional |
Opening method | ID / IC card reader,exit button, etc. |
Communication interface | Dry contact |
Passing rate | 30persons/min |
Power input | AC220±10% 50Hz |
Input interface | + 12V level signal or DC12V pulse signal with pulse width> 100ms; |
Power | 40-60w |
Working temperature | -20ºC~75ºC(Low temperature version customizable -35ºC~75ºC) |
Working environment | Indoor / Outdoor (Outdoor canopy) |
Working temperature | -30ºC~60ºC |
MCBF | >=6million times |
Dimension | 1200*230*980mm |
Features:
1. Fully rainproof enclosure made of alloy aluminum or stainless steel. Compared with pedestrian access equipment such as wing gates and swing gates with general functions, the three-roller gates are more high-quality and inexpensive.
2. It has a personalized installation interface (such as card reader, indicator light installation, etc.) to ensure that the control gate equipment of the system integrator is simple and convenient during installation.
3. The movement of the tripod turnstile has an automatically adjustable hydraulic shock absorber. When the tripod turnstile is used, the sound is very small, no impact, and the brake lever automatically decelerates back to the center. The surface of the movement is electroplated with yellow dichromate.
4. It can be programmed with gate control, one or two direction control (set by the user).
5. The base is fixed with expansion bolts.
Shenzhen Zenidea Intelligent Technology Co., Ltd, a high-tech enterprise with 13 years experience specializing in the production of turnstiles and smart parking system. It is an enterprise integrating production, research and development, and sales. Obtained 30+ patent certificates. In the product production process, the product needs to go through 320 production processes, 12 quality inspection processes, and 72-hour aging process. In terms of software, we continue to optimize and upgrade standardized products and special customization requirements based on market application requirements and customer experience. We always insist on continuously innovating technology, and strive to create a global security industry boutique, to provide customers with better products.
Our production range includes tripod turnstiles, swing barrier gates, speed gates ,full height turnstiles, parking boom barrier and revolving doors which are widely used in subways, office building and other public area
> 7000m³ manufacturing center located in Shenzhen,China
> 9 R&D centers across China to provide timely and effective technical support
> 13 years of R & D and production experience
> 30+ Patents and various other related certificates (CE,RoHS,ISO9001,CNAS,IAF)
> Top 10 Security Brands in China
> Appraised as a high-tech enterprise six consecutive years
> 20+ footprint,products sold to 20+ countries
FAQ
1.How about your company's actual strength?
7000m3 manufacturing center located in Shenzhen,China
9 R&D centers across China to provide timely and effective technical support
13 years of R & D and production experience
30+ Patents and various other related certificates (CE,RoHS,ISO9001,CNAS,IAF)
Top 10 Security Brands in China
2.How do you do after-sale service?
Free lifetime technical support(video / picture / remote assistance)
24/7 technical online service
Free replacement of hardware damaged during the warranty period (except for human factors).
3.How about your package?
Seaworthy wooden case + Foam.
Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap.
4.How about the lead time?
Stock products: 5-7 days
Out-of-stock products: According to the production schedule,12-20 days.
5.How about the payment method?
T/T , Western Union, PayPal...
