Bi-directional People Counter Barrier Turnstile Speed Automatic Entry Gate
Speed gate is one of the important parts of modern entrance and exit control. The door wing is driven by the control system to automatically open and close. The operating mode can be selected through programming settings: As long as the entry has been verified, the door wing opens automatically. Closed after delay, the delay time is adjustable. The characteristic is that the running direction of the door wings is forward and backward. The operation process is within the sight of the human body, making it safer. The style of the swing door is changeable. Generally used in banks, corporate buildings, high-end office buildings, etc.
Our speed gates provide fast, reliable access control of your building's entrance without compromising on security, while seamlessly blending in to the aesthetics of the surrounding space. We offer models featuring bi-parting panels, swing doors or sliding doors.
Features:
1. 1400mm long \brushless motor\SUS304 stainless steel Chassis \1.5mm\ Anti-fingerprint processing on the cover \ Grooving, drawing \ Digital return \ Anti-collision \ Three-year warranty on digital movements \ One for one motherboard
2. Door material:High-strength polycarbonate (acrylic) or tempered glass
3. Lane width description:narrow lane:300-550mm;wide lane:600-1000mm
4. State description:Set LED indicators on both sides of the chassis (showing three states of blue, red and green)
5. Swipe area:Two-way built-in card reader adapter slot on both sides of the lane
6. The electric control adopts DC motor to drive stable and reliable, and has low failure rate. Ultra high light traffic indicator function: directional instructions are designed with ultra bright LED lights, indicating more prominently;
7. In the case of the person who has not swiped the card into the passageway, the equipment alarm will prompt the traveler to swipe the card.
8. The function of the reverse alarm system: when a pedestrian swipes the card, the device alarms the alarm.
9. Check the following function: when the first person swipes the card, the second person doesn't swipe the card and the device will alarm.
10. Various control functions: by set the setting, the brake machine can be set at special time to the regular open mode, which satisfies a large number of people

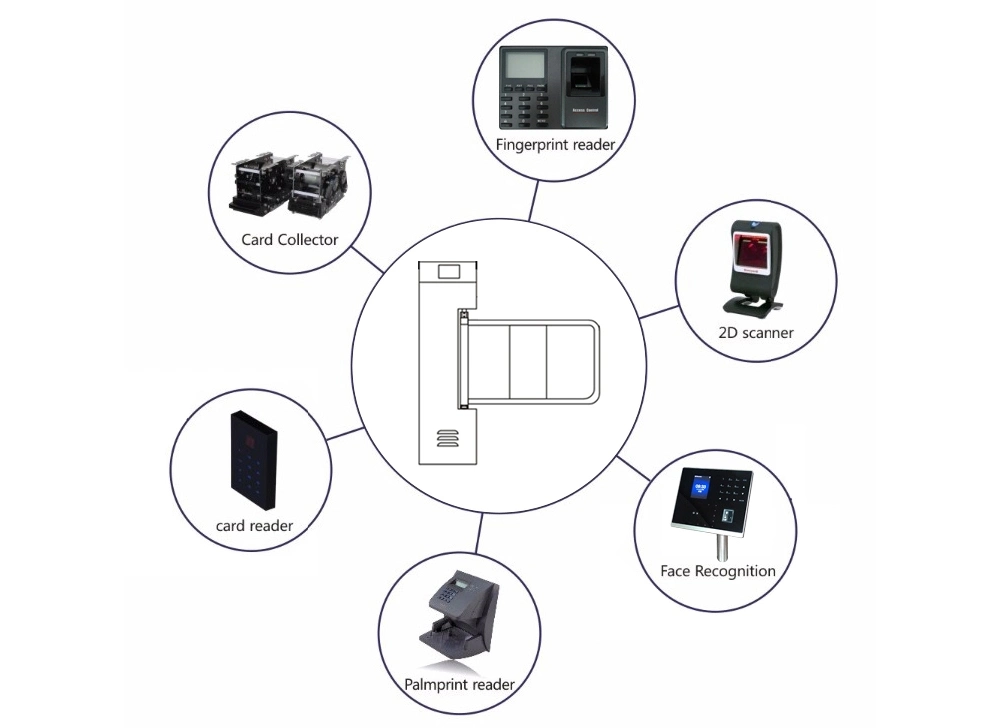

11. Various control functions: external button, remote control, bar code, IC or ID, fingerpirnt,QR code,Bar code, face recognition,etc.
Speed gate is one of the important parts of modern entrance and exit control. The door wing is driven by the control system to automatically open and close. The operating mode can be selected through programming settings: As long as the entry has been verified, the door wing opens automatically. Closed after delay, the delay time is adjustable. The characteristic is that the running direction of the door wings is forward and backward. The operation process is within the sight of the human body, making it safer. The style of the swing door is changeable. Generally used in banks, corporate buildings, high-end office buildings, etc.
Our speed gates provide fast, reliable access control of your building's entrance without compromising on security, while seamlessly blending in to the aesthetics of the surrounding space. We offer models featuring bi-parting panels, swing doors or sliding doors.
Features:
1. 1400mm long \brushless motor\SUS304 stainless steel Chassis \1.5mm\ Anti-fingerprint processing on the cover \ Grooving, drawing \ Digital return \ Anti-collision \ Three-year warranty on digital movements \ One for one motherboard
2. Door material:High-strength polycarbonate (acrylic) or tempered glass
3. Lane width description:narrow lane:300-550mm;wide lane:600-1000mm
4. State description:Set LED indicators on both sides of the chassis (showing three states of blue, red and green)
5. Swipe area:Two-way built-in card reader adapter slot on both sides of the lane
6. The electric control adopts DC motor to drive stable and reliable, and has low failure rate. Ultra high light traffic indicator function: directional instructions are designed with ultra bright LED lights, indicating more prominently;
7. In the case of the person who has not swiped the card into the passageway, the equipment alarm will prompt the traveler to swipe the card.
8. The function of the reverse alarm system: when a pedestrian swipes the card, the device alarms the alarm.
9. Check the following function: when the first person swipes the card, the second person doesn't swipe the card and the device will alarm.
10. Various control functions: by set the setting, the brake machine can be set at special time to the regular open mode, which satisfies a large number of people
11. Various control functions: external button, remote control, bar code, IC or ID, fingerpirnt,QR code,Bar code, face recognition,etc.
| PRODUCT INFORMATION | |
| Model | BS-ST100 |
| Brand | BESTER |
| Size/Stick length | 1200*120*1020(mm) |
| Arm length | 300mm |
| Material | SUS304 thickness(1.2mm) |
| Input Voltage | AC110-220±10%,50HZ60HZ |
| Driving motor | 24V |
| Failure-free operation | 10 million/time |
| Weight | 55kg |
| Traffic speed | 45-50 persons/min |
| Opening/Closing Time | 0.1s |
| Channel width | 800-1000mm |
| Operating temperature | -30ºC-+70ºC |
| Communication interface | RS485/TCP/IP |
| Working environment | indoor and outdoor |
Bester (Foshan Bester Access Control Smart Equipment Co.,Ltd) is the enterprise integrating intelligent machinery and electronic technology in road safety machines and pedestrian control turnstile gate.
Our main products are automatic road barriers,car paking system,sliding gate opener, swing gate opener,automatic turnstile gate,tripod turnstile gate,swing barrier gate,flap barrier gate,fast speed turnstile,full height turnstile gate,and all kinds of access control system,such as the rfid card,fingerprint,face recognition.
FAQ
1. How about your company's actual strength?
We are the top 5 in turnstile field in China. We have more than 100 employees, a R&D group with 10 people, 1 office and 2 factories. Factories and office buildings are more 10000 square meters in total.
We are the top 5 in turnstile field in China. We have more than 100 employees, a R&D group with 10 people, 1 office and 2 factories. Factories and office buildings are more 10000 square meters in total.
2. How about the quality of your products?
We are in the highest level of quality with the most competitive price. We choose German, Japanese and domestic lead brand accessories to ensure product quality from the source. At factory, we implement 5S management to control production process.
We are in the highest level of quality with the most competitive price. We choose German, Japanese and domestic lead brand accessories to ensure product quality from the source. At factory, we implement 5S management to control production process.
3. How do you do after-sale service?
We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
4. How about the payment method?
Standard products: 30% deposit, 70% balance payment before shipment.
Standard products: 30% deposit, 70% balance payment before shipment.
5. How about the lead time?
Normally we have stock for the hot sale models of standard products.
Normally we have stock for the hot sale models of standard products.
Regular products need 3-5 working days. The customized products need 10-15 working days.
6. How long is your warranty period?
One-year guarantee & Life-time technology support.
One-year guarantee & Life-time technology support.
7. How about your package?
Carton box+wooden case package.
Carton box+wooden case package.
