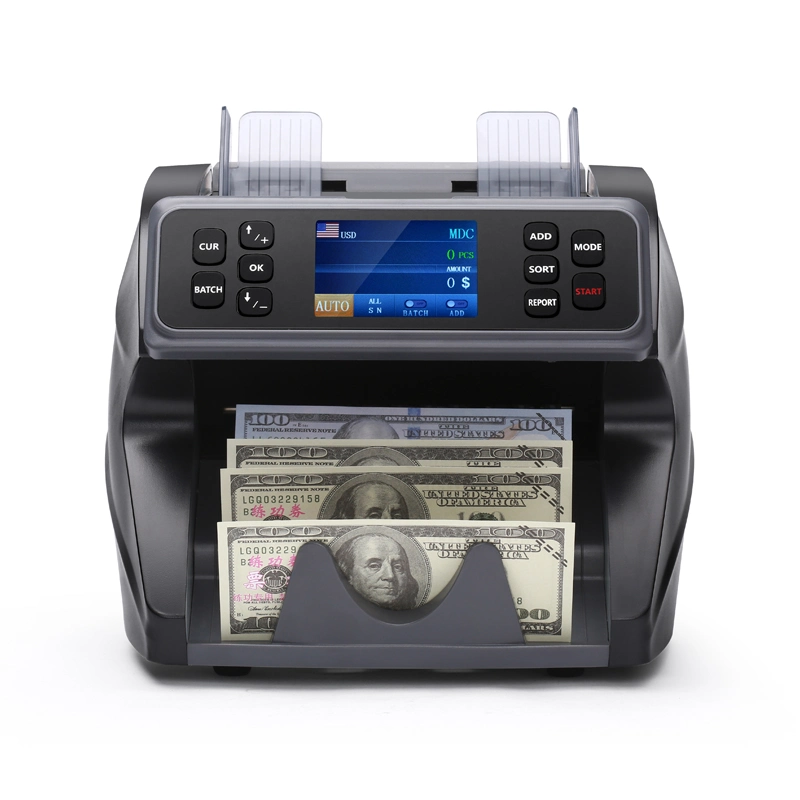

WT-5000 Professional CIS value multi currencies counter
Specifications
1. Unit Dimensions: 28(W)*26(D)*27(H)cm /11″(W)*10.2″(D)*10.6″(H)cm
2. Unit Package weight: N.W:5.3KGS/G.W:7.0KGS
3. Counting Speed: 800/1000/1200 notes/min for CNT mode,800/1000 notes/min for SDC & MDC modes
4. Size of Countable notes: 110x60mm - 185x90mm
5. Thickness 0.08~0.12mm
6. Feed system:Roller Friction Sustem
7. Hopper Capacity : 400-500 notes
8. Stacker Capacity :200 notes
9. Power Supply : AC 100-240V ±10% ,50/60 Hz
10. Current : Maximum 1.8A (100-240VAC)
11. Power Consumption < 50 Watts
12. Ambient Temperature: 0ºC-60ºC (Stocking)
13. Ambient Humidity :20%-90%(no condensation)
14. Connection Port:USB, RS232,LAN
FAQ
1.Question:Can this machine count and detect our currencies?
Answer:Our counters suitable for most of the currencies in the world.But should install the customized currencies in the machine firstly.
2.Question:Why error counting?
Answer:Should take bills into neat ,no corners,put the bills in the hopper orderly . Or maybe because of the loose hopper ,Please Turn the screw on the hopper by anticlockwise, fasten the hopper.(Important :According to the machine ,when you operate the screw ,must small and slowly adjust time by time)
3.Question:Why the machine can not work when power on?
Answer :firstly ,you must to check if the power cable connect with the counter
Second ,also check if the power strip is damaged
4.Question:why count one bill ,it always sound "BI BI BI" and error counting ?
Answer :Maybe this bill is fake note or damaged note,Please take away this note and continue counting.So this suspicious bill is not include in the counting (If this bill is the original .because of too many version of bills, the program can not detect it ,Please scan images of this bill to us ,we will improve the program.
5.Question:When occurred error of E3,E2, how to do ?
Answer:Please Turn the screw on the hopper by anticlockwise, fasten or loose the hopper slowly,but must operate it under guidance the professional people.
If machine working not fluency You could turn the screw,Turning the screw to "+" will loosen up. Turning the screw to "-" will tighten.
6. Question :when occurred erro mix value counting,how to do ?
Answer:Maybe some dusts cover the CIS sensor,pls clear it or Calibration of CIS sensor
| Item Number | Part Name |
| 1 | Stacker |
| 2 | Clear Sensor |
| 3 | Impeller |
| 4 | LCD Screen |
| 5 | Start Sensor |
| 6 | Height block |
| 7 | Handle |
| 8 | Power socket |
| 9 | Power switch |
| 10 | Display port |
| 11 | USB port |
| 12 | Adjust button |
