Fire Alarm System Reflective Optical Beam Smoke Detector

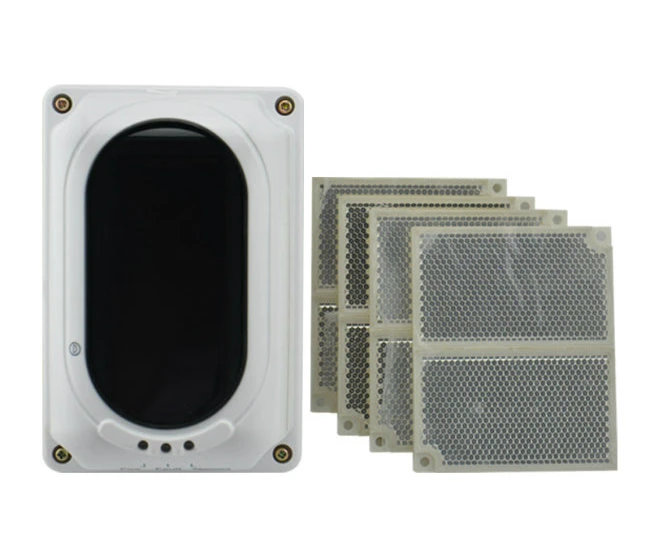

The AW-BK901 infrared linear reflex beam smoke detector, being designed for fire prevention in the open area, is a long interval one and used with the fire alarm controller. The detector is made up of the combination unit of the emitter and the receiver as well as the reflecting mirror. The signal issued by the emitter enters into the receiver after reflection by t
1. Unit the emitter and the receiver as one. In that case, it has advantages of easy and convenient installation as well as wonderful collimation for the optical path.
2. Automatic calibration to make sure one person can debug the device easily.
3. Self-testing function of to monitor the internal fault of the detector.
4. Automatic compensation for the factors of t h e receiving signals to avoid the influence of dust pollution, positional deviation and aging of transmitter tubes.
5. The detector is designed for optical path, strong antijamming capability, seal design and reliable anti-corrosion and water-proof.
|Power supply voltage||16V~28VDC|
|Overall power consumption||<3W|
|Use conditions||Temperature: -10°C~+50°C|
|Relative humidity ≤ 95%|
|Protective area||The maximum protective area of the detector is 1400 m² (14×100=1400 m²) and the maximum width is 14m.|
|Optional Monitoring Distance||AW-BK901-25 25meters with 1 reflector|
|AW-BK901-40 40meters with 1 reflector|
|AW-BK901-70 70meters with 4 reflector|
|AW-BK901-100 100meters with 4 reflectorS|
Packaging & Shipping
1) PEE bag per unit
2) Outside Cartons
3)Strict & Standard Export Packing Procedures Adopted Exterior Corrugated Hardboard Carton Interior Blister Buffer Staff, Asenware fire pump control equipment.
Asenware, manufacturer of fire alarm and fire suppression system since 2005. Our headquarter is in London, UK, with factory Shenzhen, China
We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects.
1. Addressable fire alarm system(FP100 series,2189,2100 series)
2. Conventional fire alarm system(2166 series)
3. FM200 gas fire suppression system
4. Emergency light system
5. Fire pump system
6. Fire hose and fire hose reel cabinet
1.OEM / ODM services.
2.Professional technical team.
3.Offer Free technical support whenever you need
4.Two year warranty and technical maintenance
Q1: Are you manufacturer?
Q2: What is the lead time?
Fire control: one week working day
bulk quality: three weeks working days
Emergency lights: two weeks working days
bulk quality: four weeks
FM200: two weeks working day
Fire pump: 25 days
Q3: How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or by Air. 3-5 days after payment received.
Q4: Can I have a sample order?
A:Yes,we welcome sample order to test and check quality.
Q5: Do you offer OEM service?
A: Yes, we can design the things according to your request.
