Celling Mounted Passive Infrared PIR Motion Detector Sensor For Hotel Occupancy System
* Completelyautomatic induction: The switch automatically connect upload equipment, until detecting people not in the induction scope and automatically shut-off timely.
* High-performanced switch relay: Connection load strength, load capacity upto1000W, switches upto 100,000 times.
* Delay time adjustable:16 - 350S
* Low power consumption:Switch own power loss<0.016W/h (year consumes electricity< 0.14 kwh).
* Anti-radar function: Lightning protection components built inside
>>Parameter
>>Typical Wiring Diagram
>>Installation
>>Application
>>Company Profile
Hotowell is a high-tech company with rich experiences in product design and manufacturing, knowledge about global HVAC standards, and highly-trained team. Our objective is to produce and design user-friendly HVAC products on the highest technical level for improving people's experience in temperature/environment comfort.
Hotowell has been cooperating with many international companies and HVAC projects through Europe, American, Asia, Oceania. Our product range contains:
Thermostats, Motorized Zone Valves, Ball Valves, Valve Actuators, Damper Actuators, Controllers, Radiator valves, and etc. covering industrial, commercial and residential temperature controls.
>>FAQs
Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.
Q2:What is the MOQ, small quantities accetaple?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.
Q3:How is your products' quality and warrenty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.
Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.
Q5:Do you supply OEM or ODM?
A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.
Q6:Why should I buy products from your company?
A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reacton, ...
In a word, WE ARE DIFFERENT, why not just try from the Email...
Hotowell International Co.,Limited
hotowell.en.made-in-china.com
>>General.
HTW-L727 is a ceiling-mounted passive infrared detector with high stability. It based on infrared automatic control technology, when people enter the induces scope, the special-purpose sensor surveys the mutative infrared spectrum of human body, then the switch automatically connect upload equipment, until detecting people not in the induction scope and automatically shut-off timely.>> Features
* Bipolarity design: Similar with ordinary wall switch (three connections), load capacity upto1000W.* Completelyautomatic induction: The switch automatically connect upload equipment, until detecting people not in the induction scope and automatically shut-off timely.
* High-performanced switch relay: Connection load strength, load capacity upto1000W, switches upto 100,000 times.
* Delay time adjustable:16 - 350S
* Low power consumption:Switch own power loss<0.016W/h (year consumes electricity< 0.14 kwh).
* Anti-radar function: Lightning protection components built inside
>>Parameter
No. | Parameter | Values |
1 | Induction way | Passive |
2 | Induction principle | Human body Infrared |
3 | Induction distance | 7 meters |
4 | Induction angle | 140 degrees coning angles |
5 | Lux range | 5LUX-500LUX (adjustable) |
6 | Working voltage | AC110V or AC240V(50Hz/60Hz) Or 24Vac or Others Optional |
7 | Self power consumption | <0.016W/h |
8 | Loading capacity | Inductive 500W Resistance 1000W |
9 | Ambient temperature | -20ºC~50ºC |

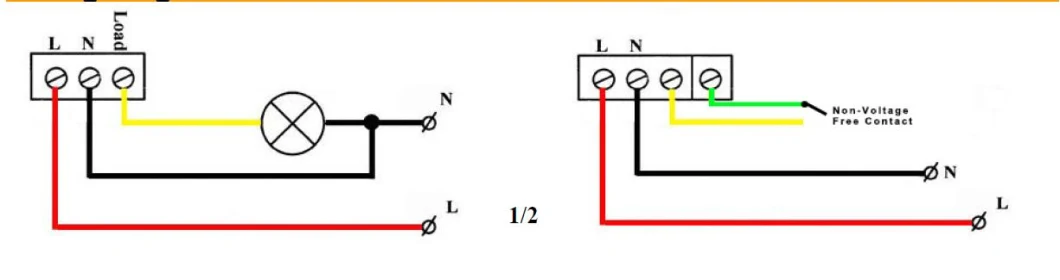

>>Typical Wiring Diagram
>>Installation
>>Application
>>Company Profile
