Area fiber optical sensor falling count for food package
Array fiber unit sensor Features:
Fiber optic sensors used for tiny object detection, including both metal and non-metallic items, plastic objects, semi-transparent objects......, it just like a photoelectric switch, featured as high precise and small volume, especially suitable for any application in very limited mounting space. but its sensing range is short compared to photoelectric switch.

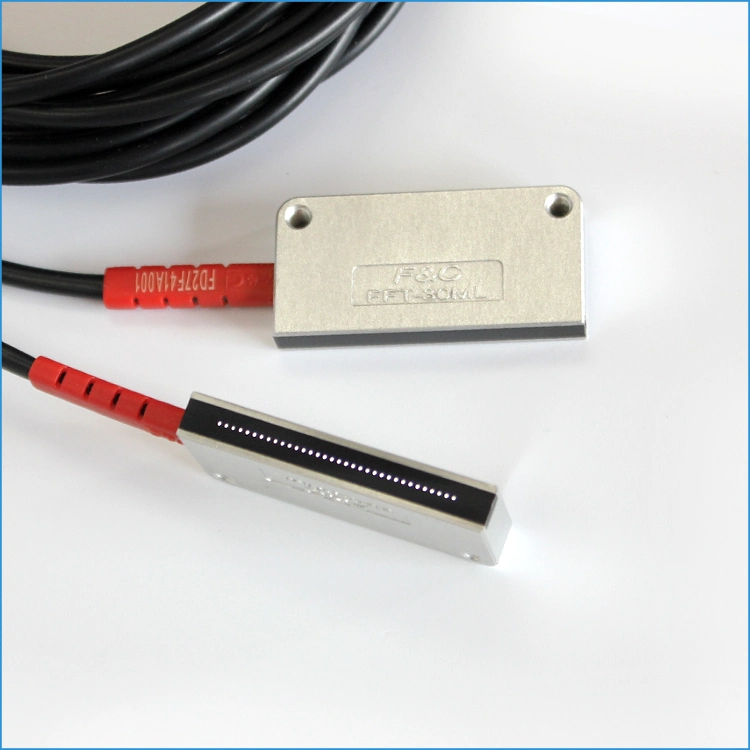

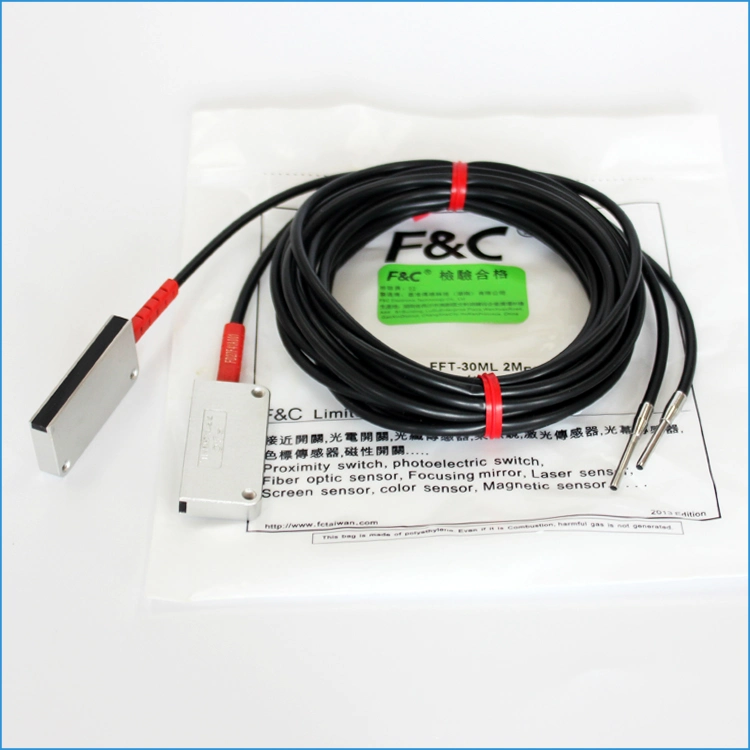

FFT-30ML Array type Through Beam fiber unit work with Digital fiber amplifier FF-403, which is a quite easy and smart control with 8 unit digital display. it is for area detection, 30*500mm . dimentions check below:
Compatible Digital Fibre Amplifier FF-403:
Optic fiber sensor Applications
Optic fiber sensor factory Office, exhibition, staffs & customers
Array fiber unit sensor Features:
Fiber optic sensors used for tiny object detection, including both metal and non-metallic items, plastic objects, semi-transparent objects......, it just like a photoelectric switch, featured as high precise and small volume, especially suitable for any application in very limited mounting space. but its sensing range is short compared to photoelectric switch.
FFT-30ML Array type Through Beam fiber unit work with Digital fiber amplifier FF-403, which is a quite easy and smart control with 8 unit digital display. it is for area detection, 30*500mm . dimentions check below:
Through Beam type Array optical fiber sensors
| Model | Light spot length(mm) | Maximum sensing Area(mm) | Minimum Sensing objects(mm) | Diifuse model available |
| FFT-10ML | 5mm | 5*500 | daimeter 0.1mm gold wire | FFR-10ML |
| FFT-20ML | 10mm | 10*500 | daimeter 0.5mm gold wire | FFR-20ML |
| FFT-25ML | 25mm | 25*500 | daimeter 2.0mm gold wire | FFR-25ML |
| FFT-30ML | 30mm | 30*500 | daimeter 3.0mm gold wire | FFR-30ML |
| FFT-35ML | 35mm | 35*500 | daimeter 4.0mm gold wire | FFR-35ML |
| FFT-45ML | 45mm | 45*500 | daimeter 4.0mm gold wire | FFR-45ML |
| FFT-50ML | 50mm | 50*500 | daimeter 5.0mm gold wire | FFR-50ML |
| FFT-100ML | 100mm | 100*400 | daimeter 30mm gold wire | FFR-100ML |
Compatible Digital Fibre Amplifier FF-403:
Optic fiber sensor Applications
Optic fiber sensor Factory Information
F&C Sensing Technology is a high-tech enterprise, specialized in R&D, manufacturing and marketing industrial automation control sensors which is mainly for limit protection, counting and presence or absence judgement. there are 14 series and around 5000 models available, based on Changsha, Dongguan and Taiwan, F&C sensors and our authorized distributors around the world are dedicated to provide wonderful one-stop-service to all the customers. Our main products include Fiber optic sensor, Fiber Unit, proximity sensor,photoelectric sensor, light curtain, label sensor, pressure switch, magnetic switch, din-rail power supply etc. and producing is strictly correspond with ISO9001, ISO14001 and OHSAS18001.Optic fiber sensor factory Office, exhibition, staffs & customers
