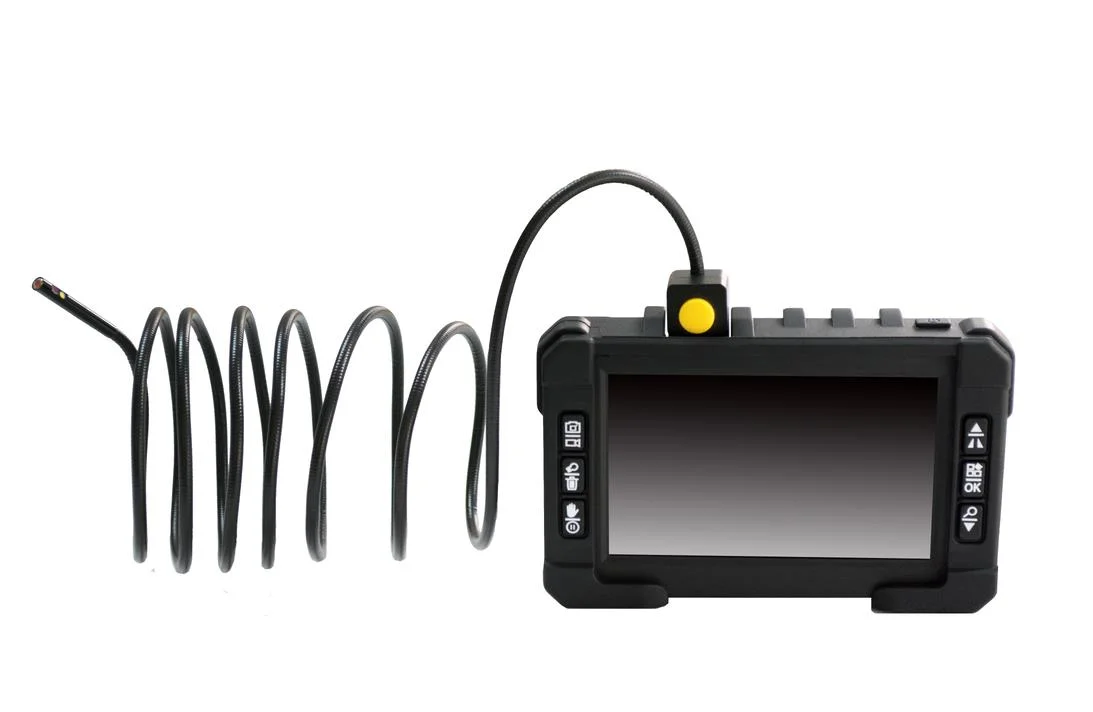

3'' TFT HD 720P Video Borescope with 1m camera probe coiled inside the case for storage
Patented Product
Utility model patent certificate NO.:ZL20191036613.5
Design Patent Certificate NO.: ZL201930354563.4
Portable&Compact Design
Simple Operation
High Performance
Small Size
Light Weight
Saving Space & Freight
FEATURES
*1M IP67 waterproof snake camera probe is coiled inside the case for storage
*The camera tip accessories are stored in a small holder inside the case for convenient collection
*3 inch high contrast color LCD

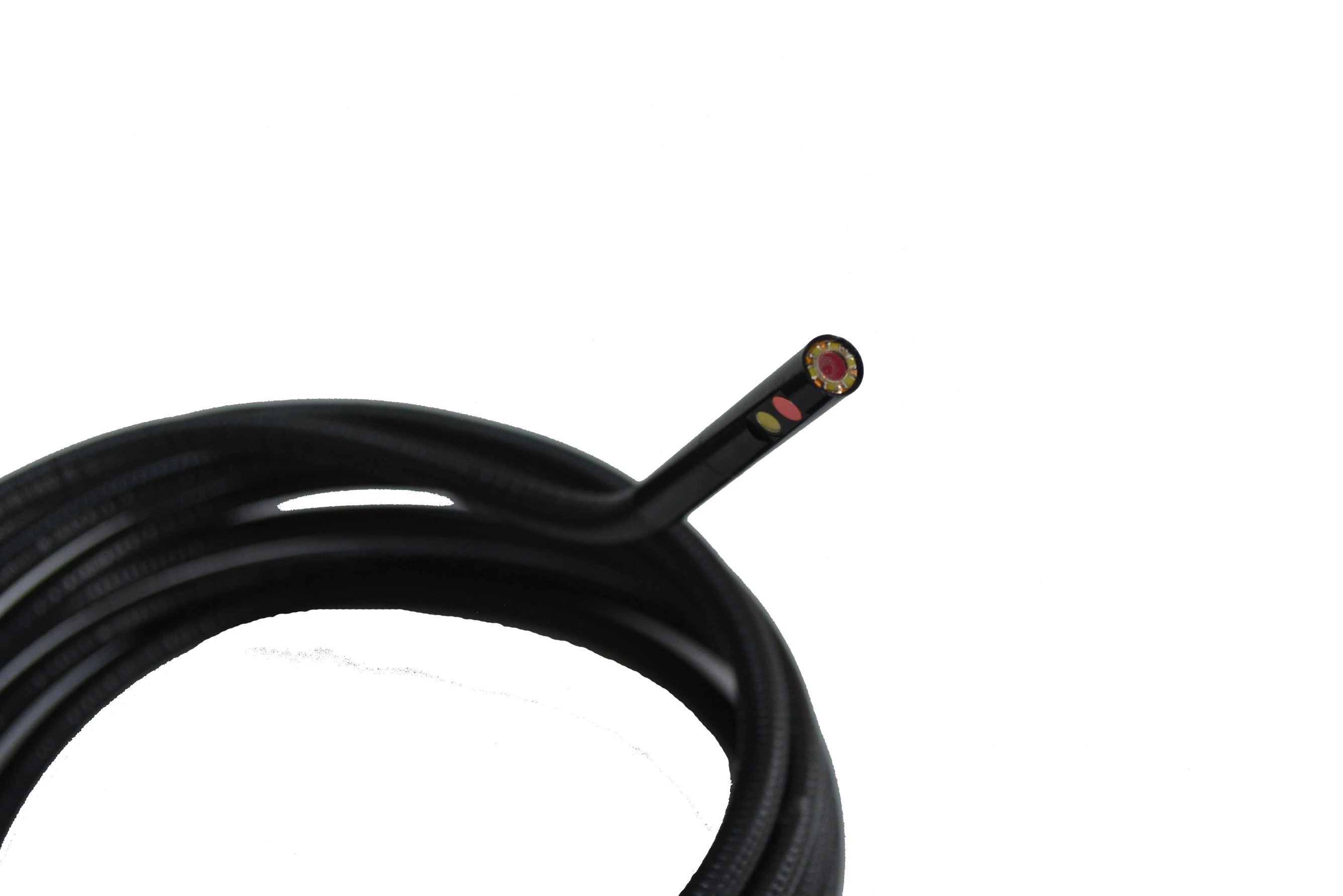

*5.5MM HD ultra small camera lens with flexible snake tube
*6 light-adjustable LEDs mounted on lens
*7 navigation buttons for functional partition
*Photo and video function when the memory card is placed
*Support Micro SD card MAX. 32GB( optional, excluding SD card)
*Flashlight function
*Powered by four "AA" batteries (not included)
*Compact rugged structure design makes small size, portable and convenient to carry
*Small package makes less space, lower freight cost and warehouse fee
SPECIFICATIONS
| Items | Product Standard | Specifications |
| Snake Tube Camera | Camera Lens | SCMOS |
| Resolution | 1280*720 | |
| Viewing Angle | 65° | |
| Focal Distance | 3.5CM | |
| Depth of Field(DOF) | 0.7CM-30CM | |
| Light Source | 6LED | |
| LED Light Irradiation Distance | 30CM | |
| Camera Outer Diameter | 5.5MM | |
| Length of Metal Camera Part | 2.4CM | |
| Video Output | / | |
| Temperature detection range | 0-80° | |
| Working Current | 95MA | |
| Working Voltage | 3.5V-5V | |
| Working Temperature | 45° | |
| Working Humidity | 5%-95% | |
| TFT Display | Size(Active area) | 3inch |
| Resolution | 640*480 | |
| Luminance for LCM | 400 | |
| Image Zoom | 1-4times | |
| Image flip | 180°flip | |
| Brightness Control | / | |
| Video | Video input/Output | 1280*720 |
| Image/Video Resolution | 1280*720 | |
| Signal Format | Digital | |
| Image Format | JPG | |
| Video Format | AVI | |
| Internal memory | TF card | |
| Power Supply | Working Voltage | 6V |
| Working Current | 380MA | |
| Internal Dry Battery | 4AA | |
| Work Time | Continuous working time | 2hours |
| Product Dimension | L*W*H(mm) | 160mm x 85mm x 35mm |
| Product Weight | Unit(g) | 0.6kg |
| Package Dimension | L*W*H(mm) | 180mm x 120mm x 42mm |
| Package Weight | Unit(g) | 0.8kg |
APPLICATIONS
Automobile service, Aviation maintenance, Archaeological expedition, Lab observation, Search and rescue, Oil&Gas industry inspection, Equipment or Furnishing installation, etc.
Notice:All graphics and specifications are subjuct to minor change without prior Notice. All rights reserved.
Warranty
Our products are warranted for one full year (checking and repairing services) from the date of purchase which products are not being damaged by any man-made factors. If the returns are due to the goods quality or our mistakes, we will bear the shipping costs of returning and sending out.
OEM/ODM/Customized
We have a very skilled and professional group of technical personnel who has many years experiences, can provide with OEM and ODM services.
Sales Services
Your satisfaction is our pursuit, we guarantee you will always be satisfied with the first-class
products and perfect pre-market and after-sales services.
website : www.hivibel.com or qyteco.en.made-in-china.com
FAQ
Price
We provide the competitive factory price based on EXW or FOB. We can quote the best freight cost by courier/aira/forwarder for your reference.
MOQ
We don't have MOQ except for OEM/ODM/customized products. The prices vary depending on order quantity.
Order Process & Payment term
Online order is not available now, we only can provide offline order:
Step 1: Please you place order to us by email or message.
Step 2: We send Proforma Invoice to you for your confirmation.
Step 3: You make payment after confirmation.
Payment term :T/T , Western Union(only for payment less than 2000USD)
Packing
All the inspection camera kit is standard packed with tool case except the 89 series with economical packing by paper box as standard and tool case optional. Special requirements should be mentioned in order.
Shipping
Shipping way could be chosen according to customer requirements, courier delivery, air cargo, sea cargo or designated freight forwarding . We will coordinate with every delivery from factory to destination, and keep reporting the status of transportation.
Production Time
Usually our products are in stock, but if one of our product is out of stock, the production time for standard products will be from 3-15days according to the order quantity. For OEM/ODM/customized products, the production time will be 20-45days different according to the degree of difficulty or easiness.
